Name: JOYO PXL 8 Loop Guitar Effects Pedal Loop Controller
SKU: Pxl 8
Availability: InStock

JOYO PXL 8 Loop Guitar Effects Pedal Loop Controller

SKU: Pxl 8

Please note that we run various advertisements on this website. As an Amazon, eBay & Reverb partner, we have an opportunity to earn commission from any qualifying purchases made. Don’t worry it doesn’t cost you a penny, but by law we must let you know that we monitor this traffic.

Description

The JOYO PXL 8 is a guitar effect pedal controller. This is a programmable controller that offers almost unlimited effects sets that can be switched quickly and easily. There are 8 inputs for effects and these can all be assigned to engage or disengage upto 8 pedals (loops) at any time. When engaging pedals from the JOYO PXL 8, 8 groups of pedals can be saved for instant recall. These tone groups will be stored even after the power is shut down, so no constant re-assigning your favourite groups and settings.

"Sometimes a song can require quite a complicated patch, this can mean something close to tap dancing on your pedals if you're not careful! So that's where these pedal switches come in handy. Pre program your patches for ease of use for that crucial live situation when timing is everything!"

The JOYO PXL Controller is also available in Purple here

With the maximum storage of 32 groups tone, the design of TRUE Bypass of looper guarantees the smooth transfer of signal and it avoids the effect interference caused by other electronic switches. Further, also has super fast switch speed and excellent low switch noise.

Very easy set-up with memory functionality, this will remember all set sequences even after the power has been turned off. Very nice for the stage player and travelling musician. The channel FX switching system is a floor based switching system. It is compact, easy to use and has a fully programmable memory.

Without the PXL effects pedals are connected one by one to each pedal in series, where the guitarist will turn 'ON' or 'OFF which ever pedal they want to use. If the amount of pedals used is increased this operation becomes very cumbersome especially in live performances. This problem is also known as 'tap dancing'. Using the PXL, this tap dancing is a thing of the past, simply program the JOYO PXL to active the pedals you want and when you want.

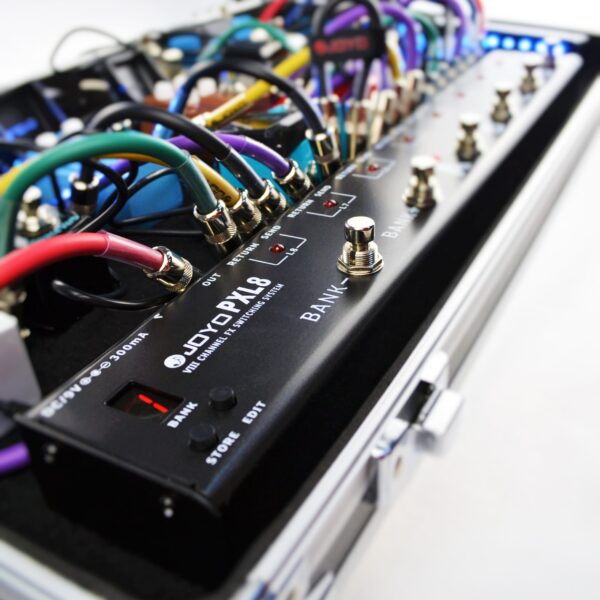

It is very simple to use the PXL series FX Pedal grouping system. Just connect your effect pedals to the Loops 1-8 on the PXL 8. Connect your guitar to the PXL's Input jack. Connect the PXL from the output to your amplifier`s INPUT. Connect the PXL power supply and also power on all your effects pedals,turn on all the FX pedals connected in the PXL's FX LOOP. Power your Guitar amplifier on. You are now ready to program the PXL 8.

As an example you could activate your Overdrive and your delay effect pedal on program 1; Your overdrive, tremolo & delay on program 2, your overdrive tremolo flanger & delay on program 3, flanger alone on 4..

So whatever pedals you have you can activate with one click, rather than several tap dancing moves and getting those important effect changes when you want them.

Takes standard negative centre 9 volt DC power supply.

IPXL 8 Weight:

1.5 Kg

JOYO PXL Dimensions

: 45.7cm long x 6.7cm wide x 5.5cm high

•Operates on a Boss style 9V DC power supply (sold separately)
•Up to 32 presets, organised into 8 banks of 4 patches.
•Uses TAKAMISAWA miniature signal relays.
