JOYO Jp-02 Guitar Effect Pedal Multi Power Supply

JOYO JP-02 Guitar effect pedal Power Supply – 10 filtered outputs each with an isolated short circuit & over current protection. Version 3. 00 JP-O2 filtered 10 x power supply 2 from JOYO technologies. A power supply now adds more power outputs with extended power output ratings. Built-in a rugged steel casing and now featuring…





SKU: Jp-02

Please note that we run various advertisements on this website. As an Amazon, eBay & Reverb partner, we have an opportunity to earn commission from any qualifying purchases made. Don’t worry it doesn’t cost you a penny, but by law we must let you know that we monitor this traffic.

Category: , ,
Tags: , , , , , , ,

Description

JOYO JP-02 Guitar effect pedal Power Supply – 10 filtered outputs each with an isolated short circuit & over current protection. Version 3. 00 JP-O2 filtered 10 x power supply 2 from JOYO technologies. A power supply now adds more power outputs with extended power output ratings. Built-in a rugged steel casing and now featuring a new slim design to fit almost any existing pedalboard configuration and all necessary power link cables included.

The new JP-02 feature the following power options, all isolated short circuit & current protection of a DC 9 volt power output with EACH output of 100mA.

Suitable for most analogue 9 volt effects with centre negative polarity. (Check the back of your pedal if you are not sure!). Also DC 9 volt power output but with a maximum output of 500mA, which is suitable for many digital effects as well when more power is required for other units on the board.

Output 9 gives a DC12 output, the maximum output current is 100mA and is used for effects requiring 12 volts of power.

Output 10 gives a DC18 output, the maximum output current is 100mA for effects or other things that carry this rating. All outputs are fully regulated and offer Isolated short circuit protection, meaning if one output is overpowered beyond the power rating for any reason, all other outputs will not be affected.

Also features blue LEDs at every output. Great for dark stages and gives your board a nice blue glow.

THE JP-02 is in use by Peter Hook & The Light on tour (JOY Division / New Order). <<Manchester Legends

JOYO JP-02 Guitar Effect Pedal Multi Power Supply

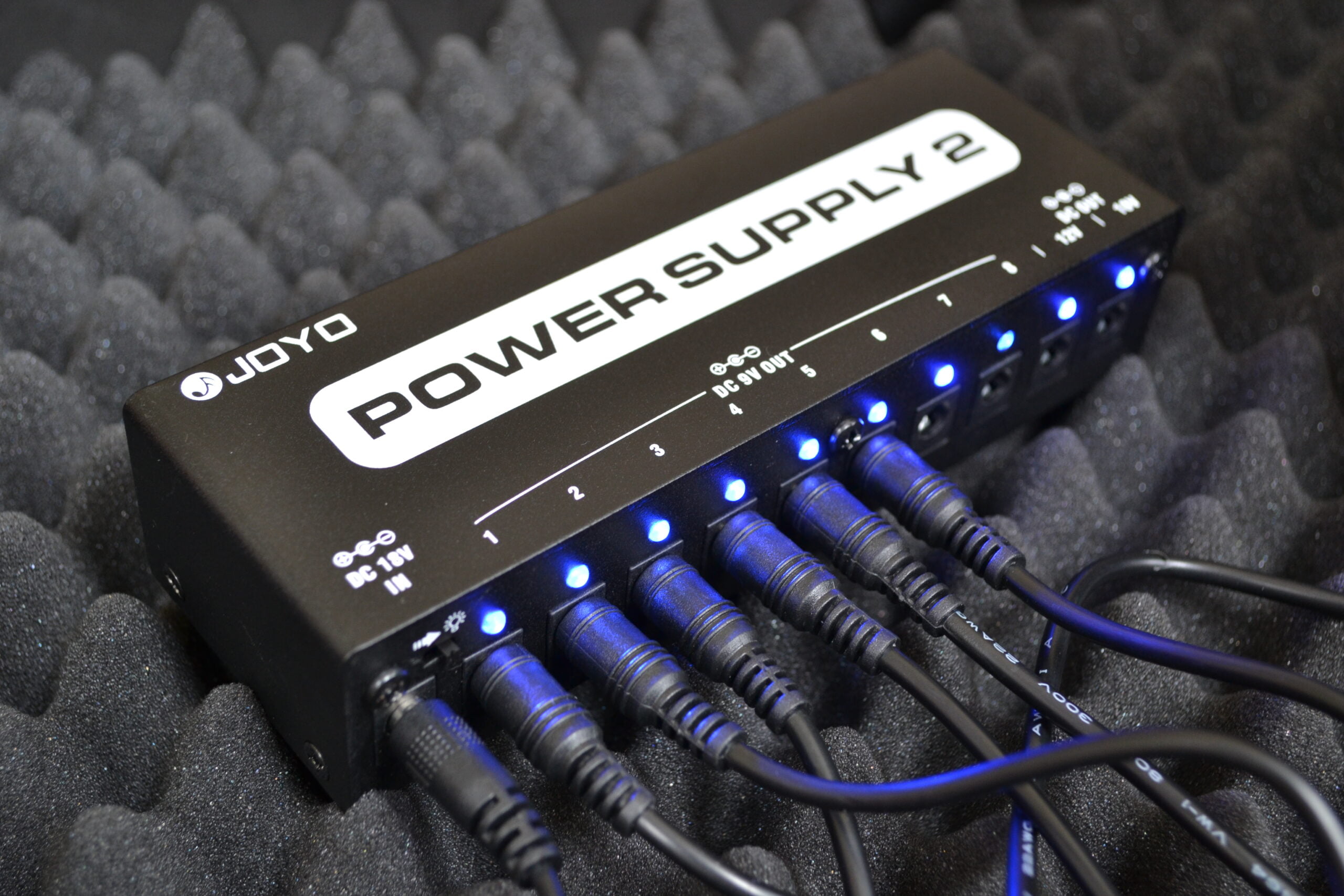

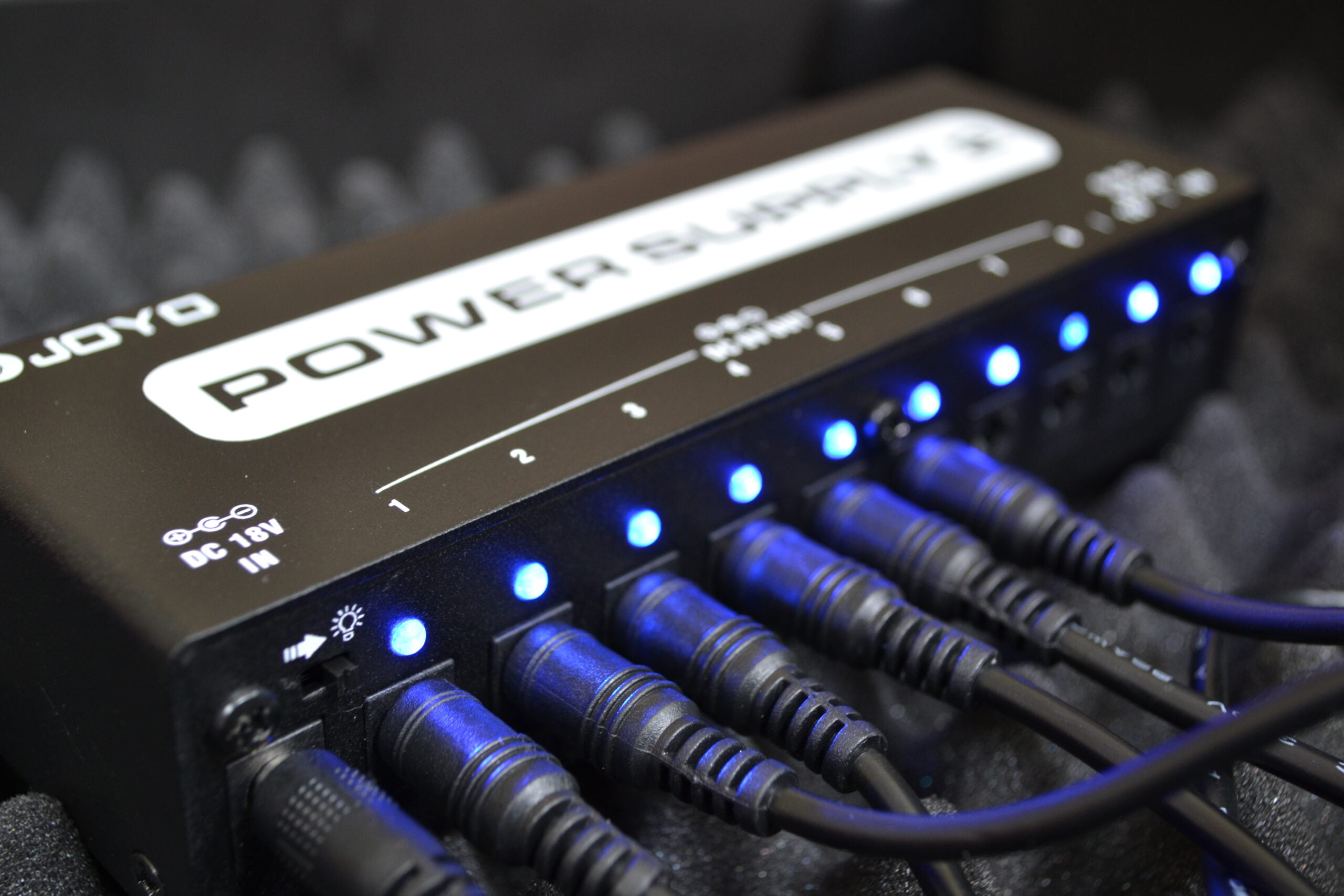

Blue LED's at every power output

The JOYO JP-02 also features Blue leds at every output. These are great for dark stages and give your board a nice blue glow. These can be turned off too.

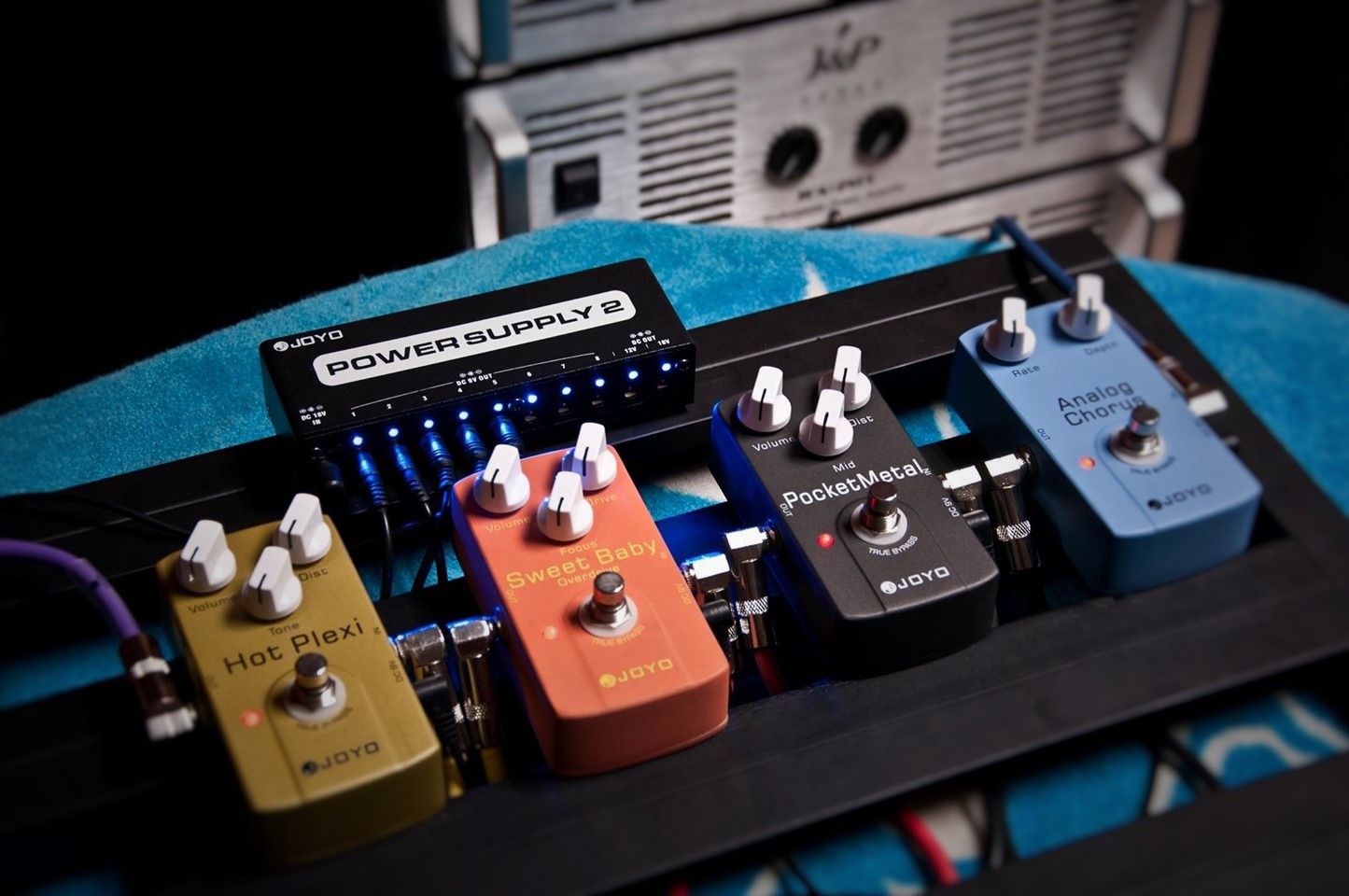

 	JOYO JP-02 Guitar Effect Pedal Isolated Output Power Supply JOYO – On Stage & On TourTHE JP-02 in used by Peter Hook & The Light

A number of the JOYO JP-02 power supplies are used by Peter Hook & The Light. on tour (JOY Division / New Order). Pictured here at the famous Manchester Ritz Nightclub.

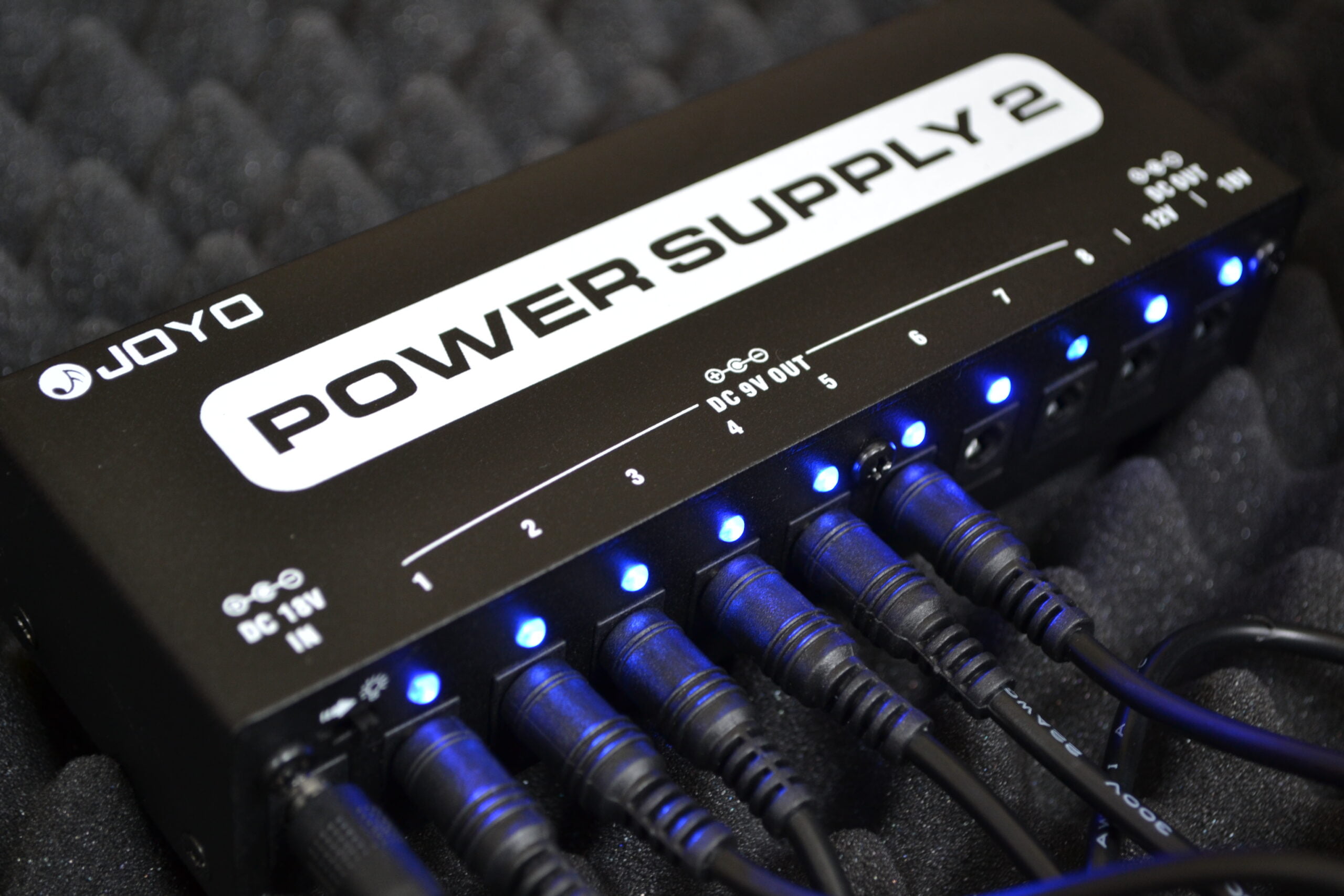

JOYO JP 02 Guitar Effect Pedal Power Supply

This is version 3.00 of the UK JOYO JP-O2 power supply. Each of the 10 outputs is equipped with individual filters ensuring each output is isolated from the other. The balance of filtered power prevents circuits from noise contamination.

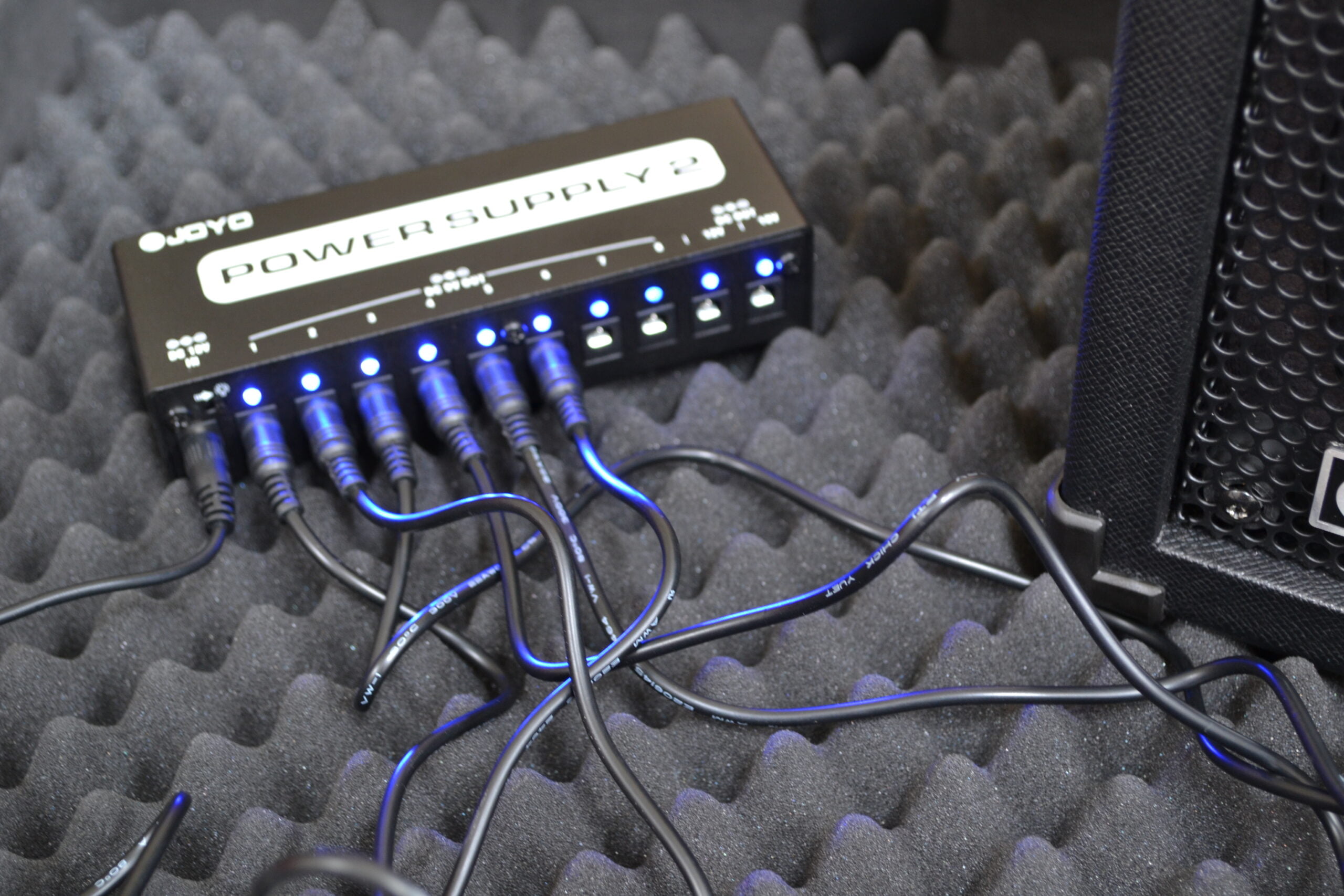

JOYO JP-02 Guitar Effect Pedal Power supply

 	JOYO JP-02 Guitar Effect Pedal Isolated Output Power Supply

 	JOYO JP-02 Guitar Effect Pedal Isolated Output Power Supply

 	JOYO JP-02 Guitar Effect Pedal Isolated Output Power Supply

 	JOYO JP-02 Guitar Effect Pedal Isolated Output Power Supply

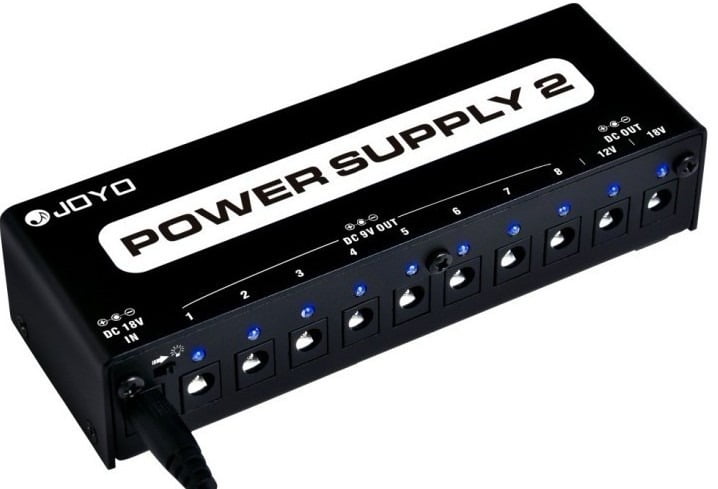

JOYO JP-02

Outputs 1 to 7 – Centre negative DC 9 volt power output with an output of 100mA. This power supply is the most common and suitable for most analogue & digital 9-volt guitar effects requiring a 100ma centre negative polarity supply. (Check the back of your pedal if you are not sure what your gear needs!).

Power Supply

Output 8 – The JOYO multi-power supply also features a DC 9 volt power output with a maximum output of 500mA, which is suitable for many digital effects as well when more power is required for other units on the board.

10 Outputs

Output 9 – gives a DC 12v output, the maximum output current is 100mA and is used for effects requiring 12 volts of power.

Output 10 – gives a DC 18v output, the maximum output current is 100mA for effects or other things that carry this rating.

Everything you need in the box.

The JOYO JP-02 power supply comes supplied with all necessary power link cables included. Also included are polarity inverter cables if needed.

The Power supply when purchased from JOYO Audio UK are ALL supplied with a 3 pin UK supply.

JOYO JP-02 Guitar Effect Pedal Multi Power Supply

JOYO Guitar Effect Pedal Power Supply

The JOYO JP-02 multi-power supply is a popular choice with musicians and is suitable for use with guitar effect pedals of all brands requiring 9 volts with a centre negative polarity.


Everything you need in the box.

UK mains adapter, power cables, invertor cables.

JOYO JP 02 power supply Dimensions.

  • 158 mm long (front)
  • 55 mm deep (front to back)
  • 33 mm high ( bottom to top)
