JOYO Je-306 Acoustic Guitar Pickup 5 Band Preamp Eq

The JOYO JE-306 is an Acoustic Guitar 5-Band Pre-amp EQ pick up kit with Volume, Bass, Middle, & Treble. It features a Tuner & piezo pickup. Everything you need to convert an existing acoustic guitar or to replace/upgrade an old faulty preamp. The built in tuner has a range of 0A to 8C which makes…





SKU: Je-306

Please note that we run various advertisements on this website. As an Amazon, eBay & Reverb partner, we have an opportunity to earn commission from any qualifying purchases made. Don’t worry it doesn’t cost you a penny, but by law we must let you know that we monitor this traffic.

Category: , , ,
Tags: , , , ,

Description

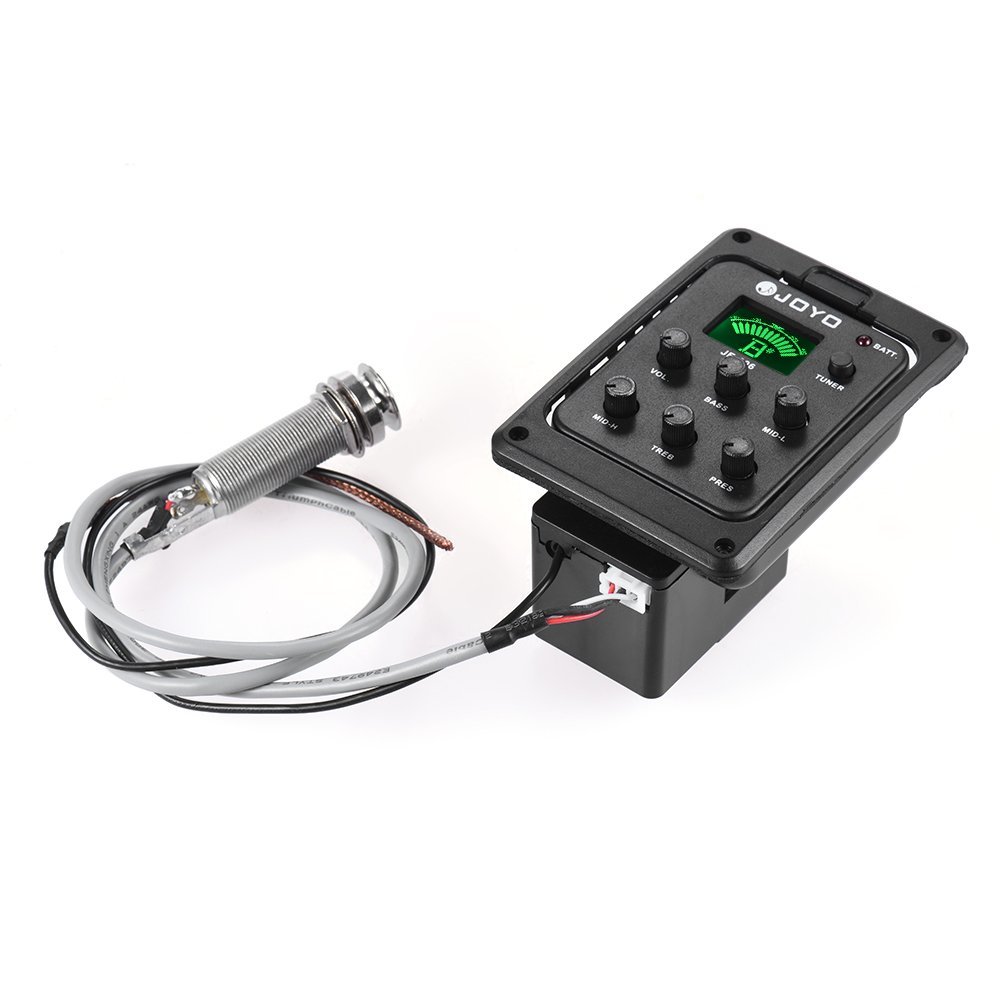

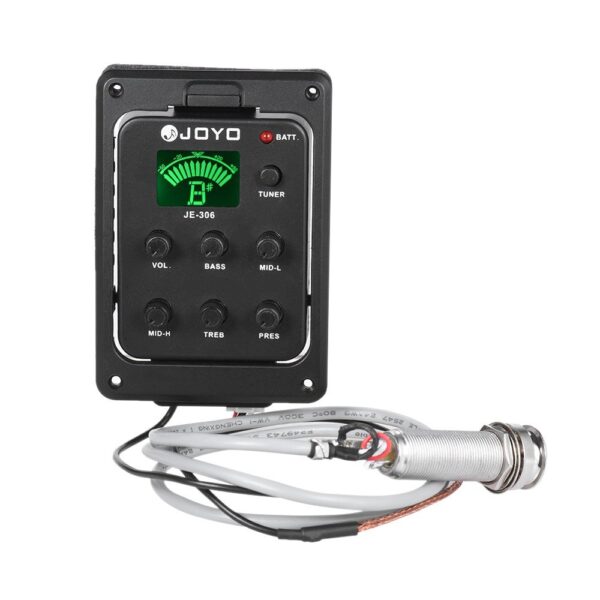

The JOYO JE-306 is an Acoustic Guitar 5-Band Pre-amp EQ pick up kit with Volume, Bass, Middle, & Treble. It features a Tuner & piezo pickup. Everything you need to convert an existing acoustic guitar or to replace/upgrade an old faulty preamp.

The built in tuner has a range of 0A to 8C which makes this EQ an ideal pickup for acoustic & classical guitars.

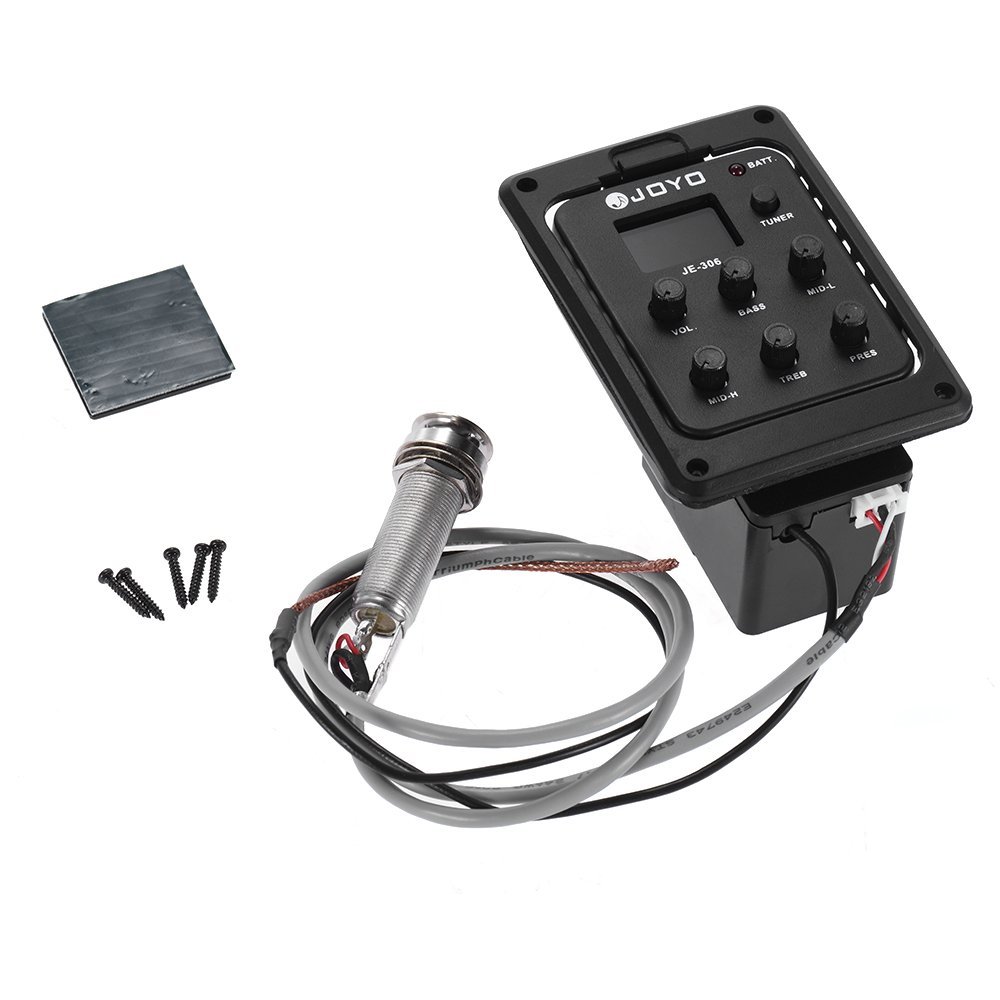

A Copper piezo pickup is included in the fixing kit including guitar jack input. Powered by a 9v battery this is a quality preamp at an affordable price.

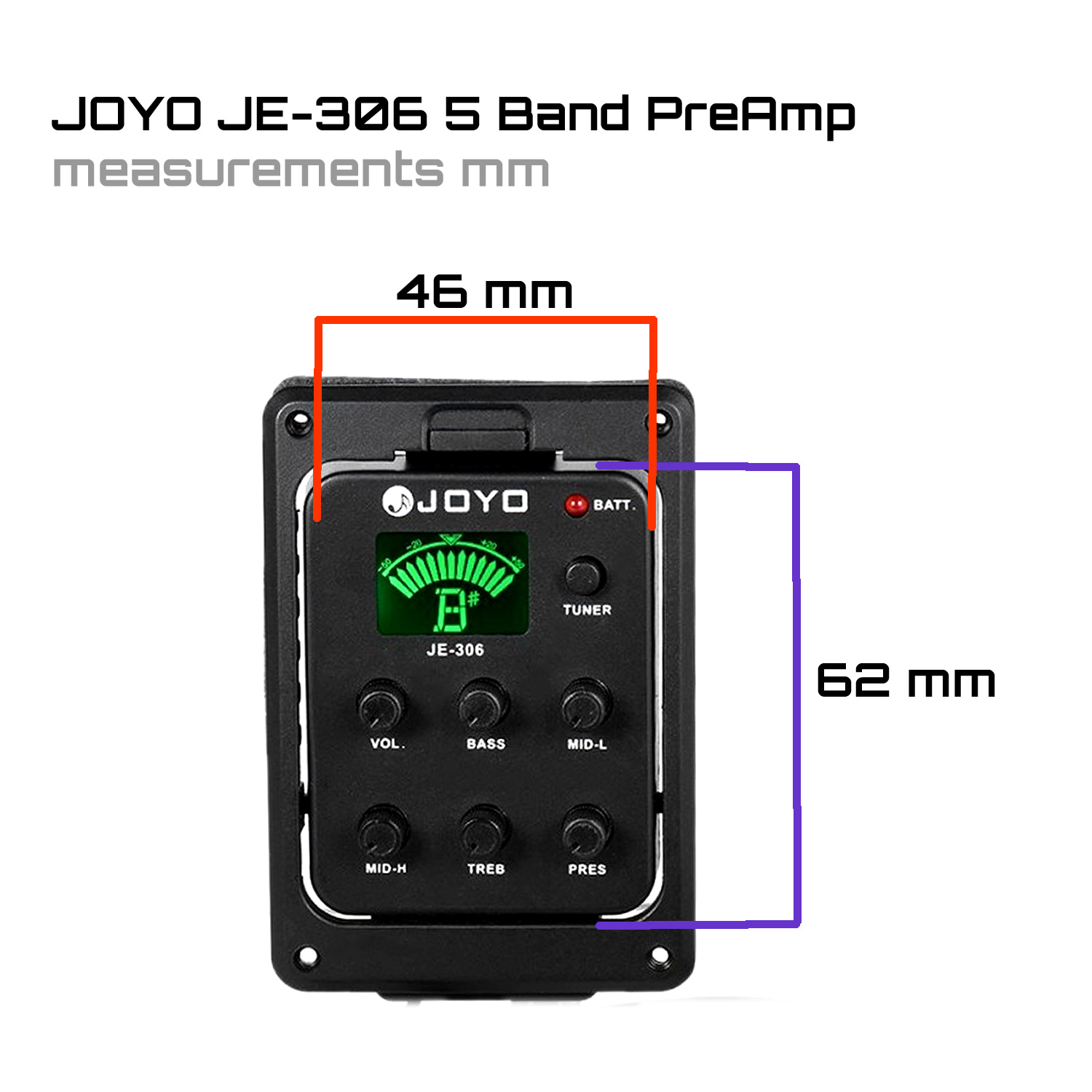

Measurements.

When fitting the pramp you will need a cutting measuring 62 mm x 46 mm hole for Pre Amp

The cable input doubles up as a strap nut and requires to be approx 10mm.


If you like this model, you might also like the latest model JE-307 which includes a phase control for eliminating feedback.



Specification

EQ Range: (Bass) ±12dB a t80Hz
(Middle 1) ±12dB at 500Hz
(Middle 2) ± 12dB at 1KHz-2KHz
(Treble) ± 12dB at 3KHz
(Presto) ± 12dB at 10KHz

A4Frequency: 440Hz
Tuning Range:0A (27.5Hz) – 8C (4186.01Hz)
Low Battery light
Copper Piezo pickup
Weight:74g
Dimensions:57(L) X 50 (H) X 85 (W)mm
Power:9V Battery included
