JOYO Eq Je-52 Guitar Pre Amp Pickup Eq Tuner Piezo Pick-Up Balanced Output

The JOYO EQ JE-52 is a pre amp, pick-up and 3 band equaliser system with both balanced and unbalanced outputs. The pre-amp can be easily fitted into your acoustic / classical guitar to upgrade, replace or for a new build or standard acoustic conversion. The guitar eq features a chromatic tuner tuning range from 1E…





SKU: Je-52

Please note that we run various advertisements on this website. As an Amazon, eBay & Reverb partner, we have an opportunity to earn commission from any qualifying purchases made. Don’t worry it doesn’t cost you a penny, but by law we must let you know that we monitor this traffic.

Category: , , ,
Tags: , , , , , , ,

Description

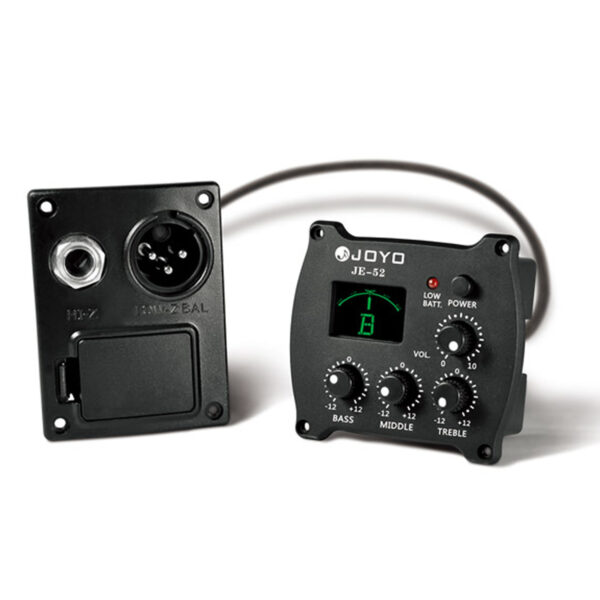

The JOYO EQ JE-52 is a pre amp, pick-up and 3 band equaliser system with both balanced and unbalanced outputs.

The pre-amp can be easily fitted into your acoustic / classical guitar to upgrade, replace or for a new build or standard acoustic conversion.

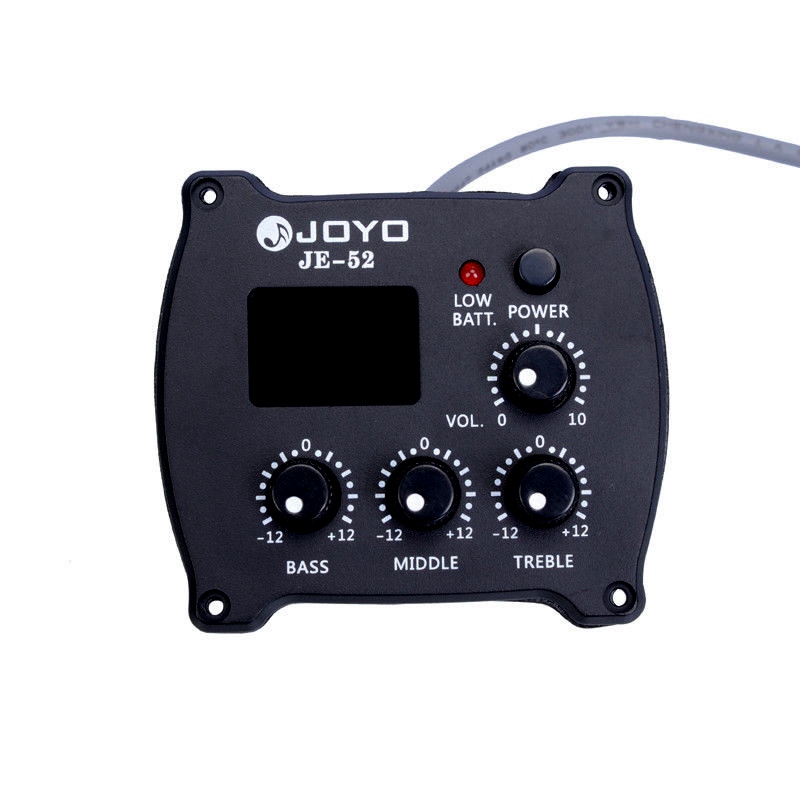

The guitar eq features a chromatic tuner tuning range from 1E b – 8C with a bright LCD display and indicator. You can dial in volume, bass, middle and treble controls to suit your style.

The JE-52 has a small enclosure and provides all the features guitarists need to be heard.

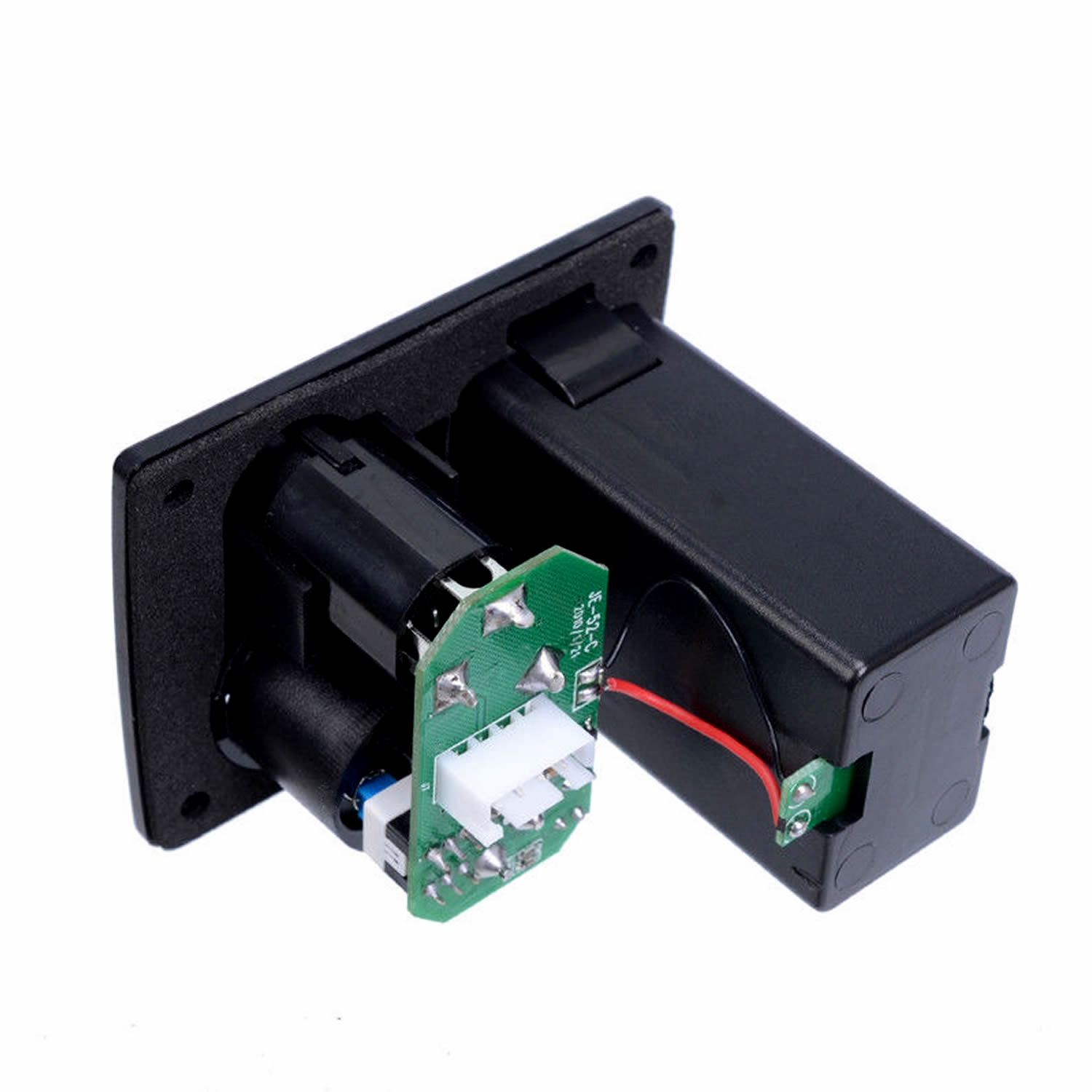

The unit is powered by a 9v battery fixed into the output housing. The preamp output features a 6.35mm jack out and a balanced 3 pin xlr out giving you a great combination for hooking up to your amp, monitor or DI.

A piezo pickup & fixing kit is included.



To fit the unit, you will need to cut 2 holes, they should be approx:

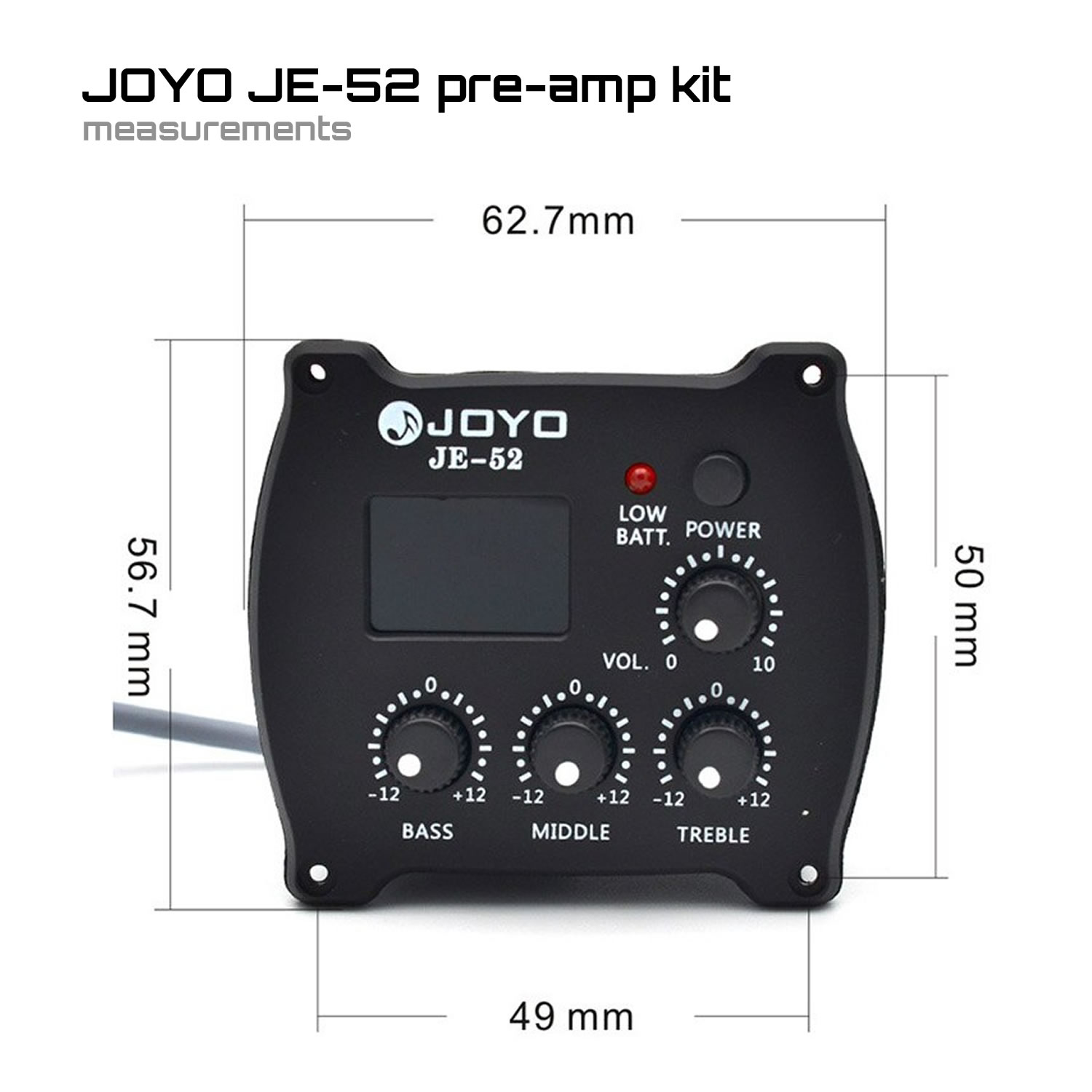

  • 49mm x 49mm for the main body preamp.

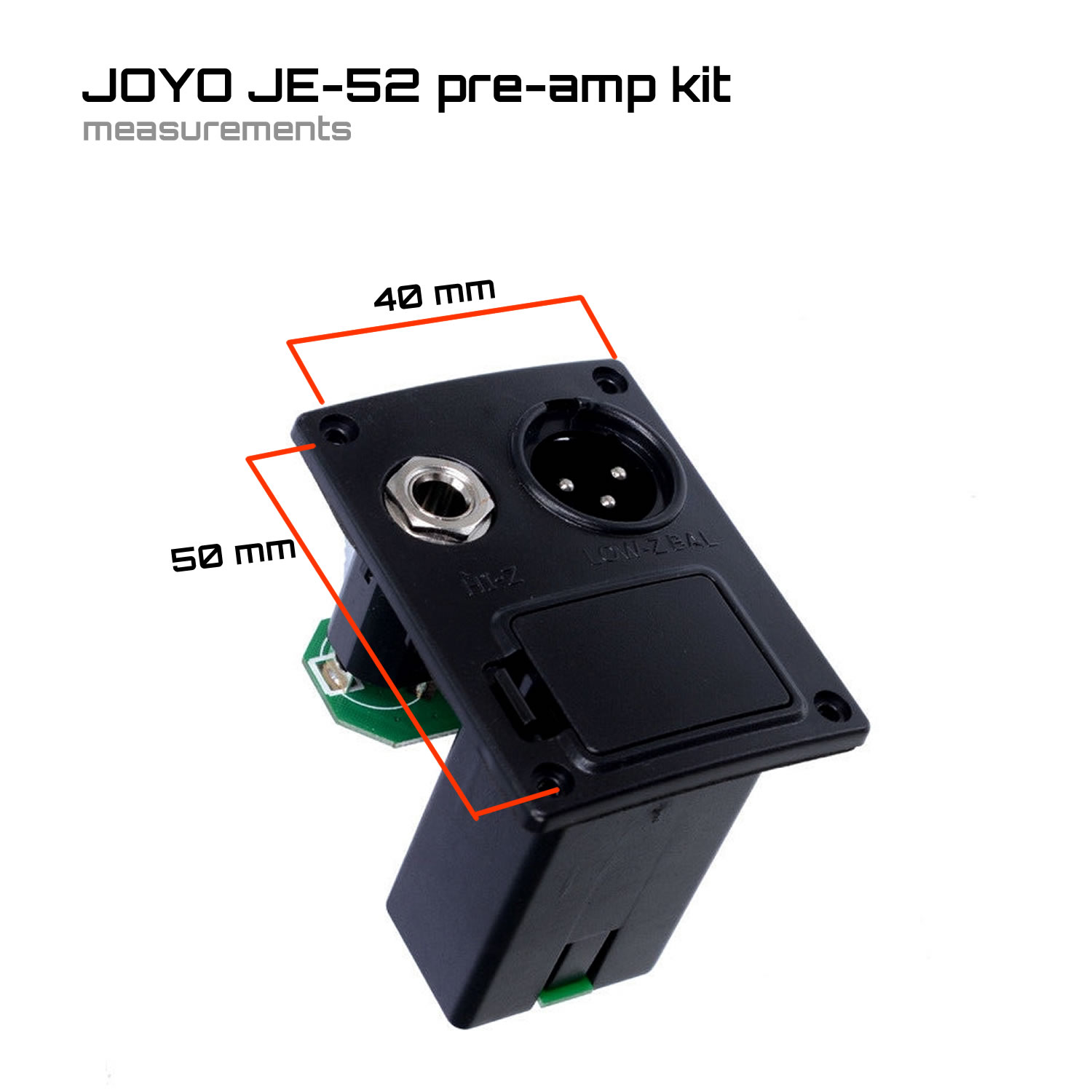

  • 40 mm x 50mm for the balanced input / jack / battery compartment



Specification

  • (Bass) +-12dB at 75Hz
  • (Middle) +-12dB at 750Hz
  • (Treble) +-12dB at 10KHz
  • Low voltage LED indicator
  • A4 frequency:440Hz
  • Tuning range:1Eb-8C
  • Tolerance:+-1
  • Weight:127g
  • Dimension:61(L)×33(H)×55(W)mm
  • Power 9v battery (included)

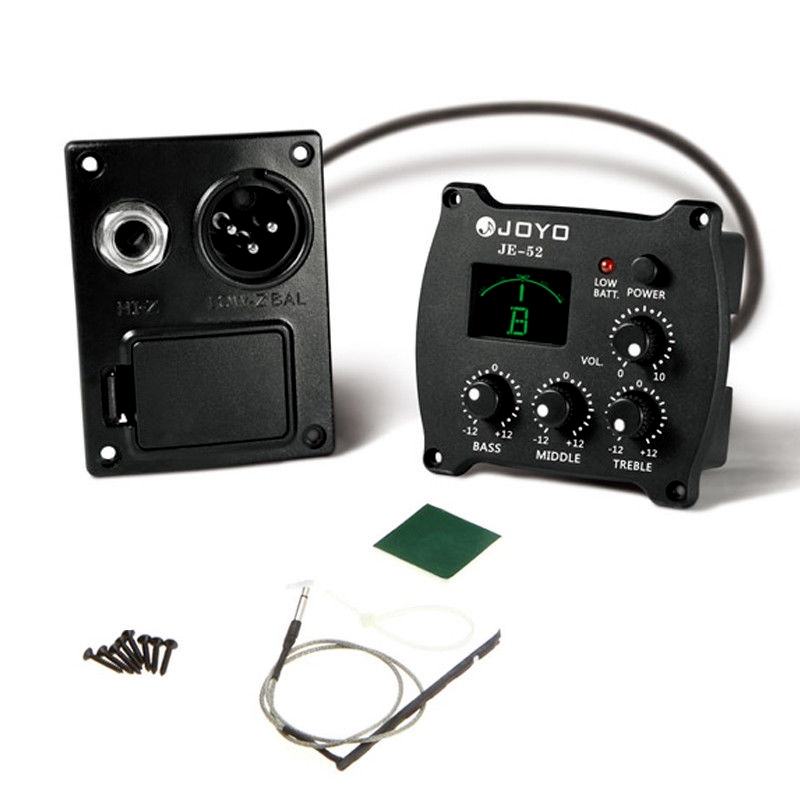

Je-52 preamp kit includes:

  • Joyo JE-52 3 Band EQ
  • piezo pick up
  • screws
